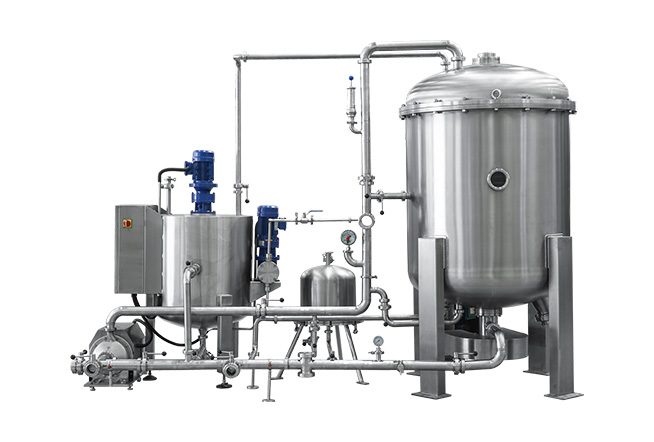

The JLP80 horizontal disc-type diatomaceous earth filter has been researched and developed by our company based on advanced foreign technology and adapted to domestic conditions.
It is designed for the clarification and filtration of liquid products such as spirits, fruit wines, soft drinks, soy sauce, vinegar, as well as pharmaceuticals and chemical products.
The JLP80 horizontal disc-type diatomaceous earth filter has been researched and developed by our company based on advanced foreign technology and adapted to domestic conditions. It is designed for the clarification and filtration of liquid products such as spirits, fruit wines, soft drinks, soy sauce, vinegar, as well as pharmaceuticals and chemical products.
It features long filtration cycles, high efficiency, consistent filtration quality, minimal filtrate loss, a high degree of automation and a comprehensive range of configurations.
With its compact structure, user-friendly operation, flexible mobility and reliable performance, this machine is the preferred choice for manufacturers of high-quality liquid products.

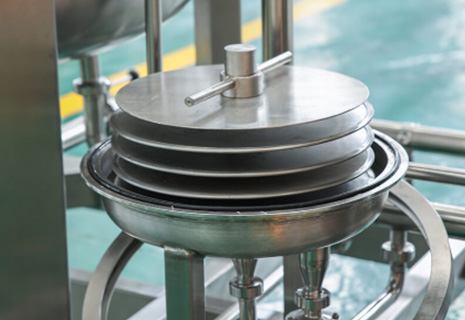

The liquid to be filtered is fed, via a centrifugal pump and a metering pump dispensing a measured quantity of diatomaceous earth slurry, into the filtration tank through the piping system. Through the filtration action of the diatomaceous earth or other filter aids on the filter discs, most larger microorganisms (such as yeast), solid particles and impurities are separated out, and the filtered clear liquid is discharged.
| Item | Key Specifications | |||
| Number of filter discs | 59 | 44 | 29 | |
| Total filtration area (m²) | 40 | 30 | 20 | |
| Maximum Operating Pressure (MPa) | 0.6 | |||
| Total Power Consumption (kW) | 14.3 | |||
| Sterilisation Temperature (°C) | 100 | |||
| Reference Flow Rate | Fruit Wine (Wine) | 200-300 | 150-220 | 100-150 |
| Fruit Juice | 150-250 | 120-200 | 80-150 | |
| Syrup | 100-200 | 75-150 | 50-100 | |
| Soy sauce | 100-150 | 75-125 | 50-85 | |
| Vinegar | 150-250 | 120-200 | 80-140 | |
| Tea | 200-300 | 150-220 | 150-150 | |
| Baijiu | 350-450 | 250-350 | 180-250 | |
| Height | 3600 | 2950 | 2300 | |
| Length × Width | 3600*1800 | |||
| Equipment weight (kg) | 3300 | 2900 | 2500 | |
