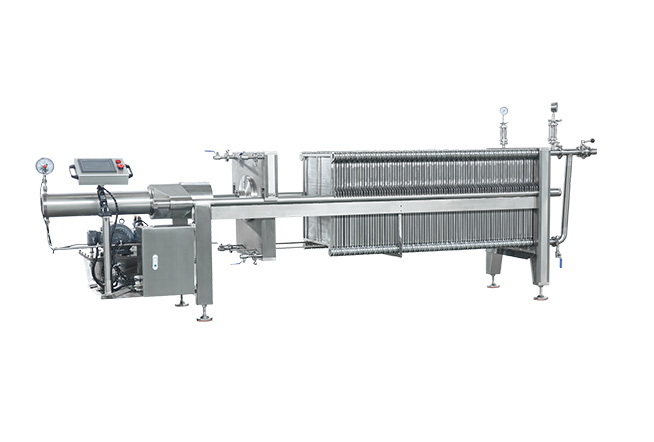

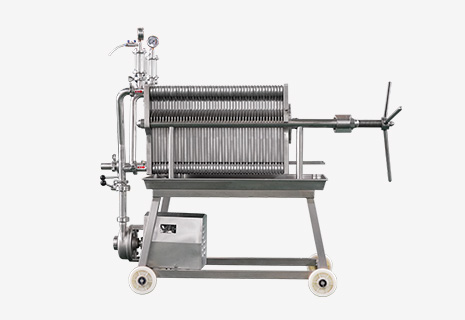

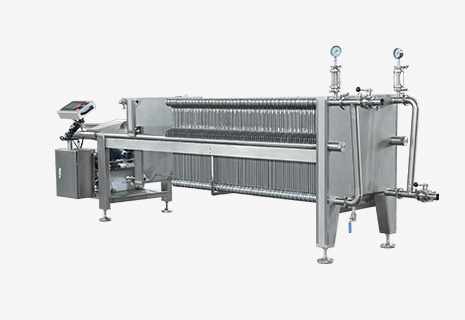

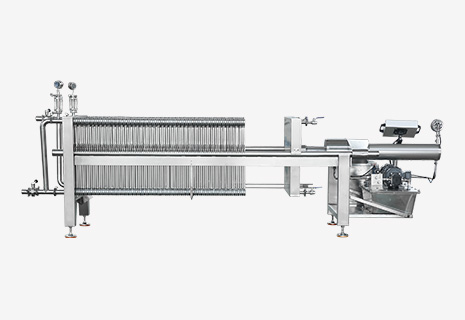

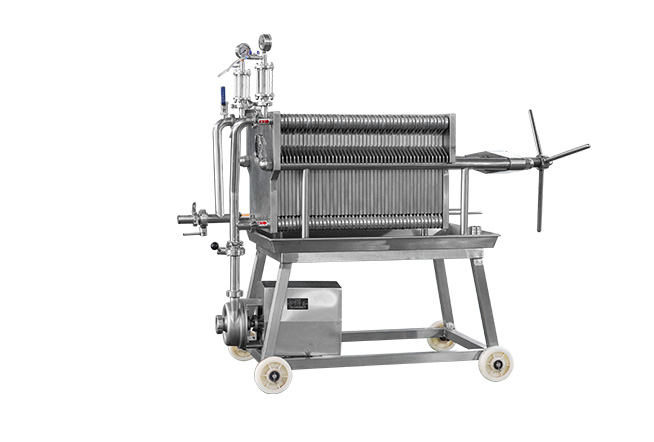

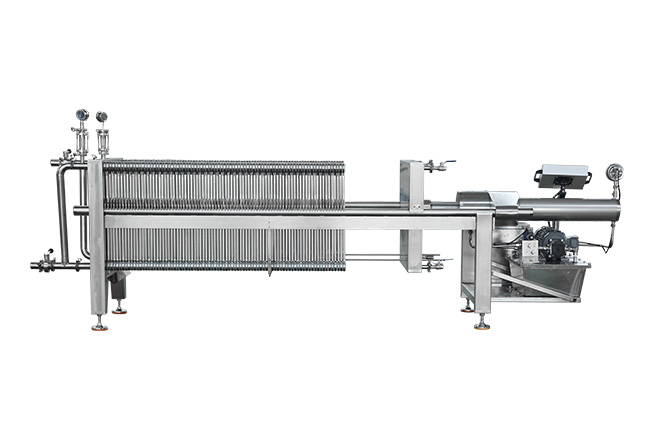

Stainless Steel Filter Press, utilizing filter paper as the filtration medium. Paired with different types of filter plates for various clarification or sterilizing filtration applications, with a precision of 0.22 microns.
Clamping Device Types: Screw manual hydraulic clamping, jack clamping, fully automatic hydraulic clamping.
Stainless Steel Filter Press, utilizing filter paper as the filtration medium. Paired with different types of filter plates for various clarification or sterilizing filtration applications, with a precision of 0.22 microns.
The equipment consists of vertically stacked filter plates and frames with filter paper sandwiched between them. Pressurized filtration relies on filter paper as the medium. During operation, filtrate enters the unit via feed pipes from a transfer pump. It flows through small holes within the upper and lower circular openings of the plate frames into the filter frames.
The filtrate then passes through the filter paper and the porous support plates on the filter plates, entering the upper and lower channels of the filter plates. It exits through the upper and lower discharge ports at the rear of the unit. After filtration, residual liquid is expelled from the filter chamber using compressed air or nitrogen. This equipment is a precision clarification filtration system. By selecting filter paper of varying precision, filtrate of corresponding purity can be obtained.
Entire unit constructed from 304 or 316L stainless steel (including frame, filter plates, piping, valves, hydraulic clamping system, electrical control cabinet, etc.).
Smooth equipment surfaces eliminate sanitary dead zones, ensuring high hygiene standards.
Withstands 60°C alkaline solution rinsing and 120°C high-temperature steam sterilization.
Single-side removable filter plate design eliminates cleaning difficulties caused by traditional double-welded structures.
Clamping options include screw manual hydraulic clamping, jack clamping, and fully automatic hydraulic clamping for convenient operation.
Customizable plate-frame types and full filter plate discharge windows.
Used for clarification filtration of liquid products including sugars, alcoholic beverages, fruit juices, plasma, Chinese herbal extracts, oral liquids, antibiotics, inorganic acids, organic acids, alcohols, benzene, and other liquid formulations.
